Xarios 300
Xarios 300
Modular range for vans and medium-sized refrigerated vehicles
BENEFITS
- Extra-flat evaporator to allow extra loading
- High reliability and longer product lifetime due to brushless fans and advanced electronic controller

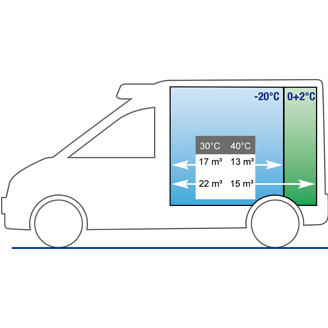

The XARIOS range is a direct drive refrigeration unit demonstrating unique versatility for vans and trucks. Its design enables transportation of fresh and frozen goods, in single or multi-temperature applications, in vehicles with box volumes from 8 to 45m3 and is available in road only or road and standby versions.
COLD CHAIN RESPECT
Featuring R404A refrigerant, XARIOS offers a large range of capacities covering temperatures from -20°C to +30°C. Supported by an extensive lineup of ultraslim evaporators, including the MXV 850 vertical evaporator, multi-temperature configurations are widely available for multiproduct deliveries.
OPTIMIZED COST OF USE
Balancing performance and cost of operation, the XARIOS range offers simple and rapid installation, light weight evaporators to optimise load space and enhanced accessibility for reduced maintenance time.
DRIVER’S COMFORT
To limit the impact on the community and improve the driver’s comfort, the XARIOS range shows low noise levels. Eventually, the cab command is easy to operate and enables an automatic selection of road or road and standby mode. The units’ condensers and evaporator skins are fully recyclable.
BENEFITS
- Extra-flat evaporator to allow extra loading
- High reliability and longer product lifetime due to brushless fans and advanced electronic controller
Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)
| MXV850 | MXS850 | |
| Capacity on road at 2400 rpm 0°C (W) | 2 860 | 3 060 |
| Capacity on road at 2400 rpm -20°C (W) | 1 650 | 1 690 |
| Capacity on road at 1000 rpm 0°C (W) | 2 240 | 2 440 |
| Capacity on road at 1000 rpm -20°C (W) | 1 150 | 1 300 |
| Standby capacity (W) | 1 820 | 1 940 |
| Standby capacity (W) | 890 | 760 |
Heating Capacity
| MXV 850 | MXS 850 | |
| Heating system 18°C/-18°C (W) | 2 800 | 2 800 |
Airflow
(High speed engine operation)
| MXV 850 | MXS 850 | |
| (AMCA 21085) m3/hr | 750 | 800 |
Weight
| Road and standby condenser | 66 kg |
| Evaporator MXV 850 | 17 kg |
| Evaporator MXS 850 | 19 kg |
Compressor
| Road compressor | Standby compressor | |
| Model | Carrier 150 | Carrier 150 |
| Displacement | 147 cm3 | 147 cm3 |
| n° of cylinders | 6 | 6 |
Electrical Stand by Motor
| Voltage / Phase / Frequency | 230/1/50 Hz
400/3/50 Hz |
| Rating | 1890 W |
Refrigerant
| Type | R-404A |
| Charge | 1,4 kg |
Sound Pressure
| High speed | 57 dBA |
Unit
| Dimensions (D x W x H) | 505 x 1 125 x 238 mm |
