Supra 750 MT
Supra 750 MT
Solutions for all your distribution needs
SUPRA range performance for refrigerated trucks
BENEFITS
- Constant evaporator airflow
- Robust design
- High reliability
- Extreme low-noise capabilities
- High cooling performance
SUPRA 750MT offers a total flexibility for multi-product deliveries with ultra-slim evaporators that can be adapted to large configuration requirement.
Developed for distribution environments with multiple doors openings, rely on the unmatched performance of the SUPRA range in your challenging operation.
The SUPRA range achieves superior pull-down and accurate temperature control at all set points. This performance is supported by a large range of evaporators with electric fans providing constant airflow independent of engine speed.
BENEFITS
- Exceptional performance characteristics
- High reliability
- Improved service accessibility
| COOLING CAPACITY | Nominal | MTS 700 | MTS 1100 | MTS 1450 | MTD 1100 | |
|---|---|---|---|---|---|---|
|
Diesel - High Speed
|
0°C/30°C
|
6330 W
|
4820 W
|
5670 W
|
6120 W
|
5880 W
|
|
-20°C/30°C
|
3910 W
|
2760 W
|
3280 W
|
3680 W
|
3350 W
|
|
|
Diesel - Low Speed
|
0°C/30°C
|
-
|
-
|
-
|
-
|
-
|
|
-20°C/30°C
|
-
|
-
|
-
|
-
|
-
|
|
|
Standby - 400V/3/50 Hz
|
0°C/30°C
|
5990 W
|
4530 W
|
5320 W
|
5790 W
|
5560 W
|
|
-20°C/30°C
|
3510 W
|
2700 W
|
2990 W
|
3400 W
|
2970 W
|
| COOLING CAPACITY 2 COMP. | ||||||
|---|---|---|---|---|---|---|
|
Diesel - High Speed
|
0 °C/30 °C
|
-
|
3880 W
|
4560 W
|
4920 W
|
4730 W
|
|
-20 °C/30 °C
|
-
|
2220 W
|
2640 W
|
2960 W
|
2700 W
|
|
|
Standby - 400V/3/50 Hz
|
0 °C/30 °C
|
-
|
3570 W
|
4200 W
|
4570 W
|
4390 W
|
|
-20 °C/30 °C
|
-
|
2130 W
|
2990 W
|
2680 W
|
2350 W
|
| HEATING CAPACITY | ||||||
|---|---|---|---|---|---|---|
|
Diesel
|
-
|
2940 W
|
3120 W
|
3300 W
|
3300 W
|
|
|
Standby - 400V/3/50 Hz
|
-
|
2860 W
|
3080 W
|
3280 W
|
3280 W
|
| AIRFLOW | ||||||
|---|---|---|---|---|---|---|
|
Diesel
|
-
|
1198 m3/h
|
2298 m3/h
|
2528 m3/h
|
2640 m3/h
|
| ATP COMPLIANT | ||||||
|---|---|---|---|---|---|---|
|
-
|
M952
|
M952
|
M952
|
M952
|
M952
|
| WEIGHT | ||||||
|---|---|---|---|---|---|---|
|
-
|
411 kg
|
23 kg
|
34 kg
|
42 kg
|
41 kg
|
| DIMENSIONS | ||||||
|---|---|---|---|---|---|---|
|
Height
|
629 mm
|
200 mm
|
200 mm
|
200 mm
|
167 mm
|
|
|
Width
|
1823 mm
|
700 mm
|
1044 mm
|
1450 mm
|
1044 mm
|
|
|
Depth
|
888 mm
|
752 mm
|
752 mm
|
752 mm
|
944 mm
|

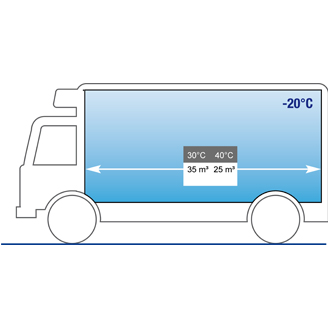

| BOX SIZE RECOMMENDATION | ||||||
|---|---|---|---|---|---|---|
|
+0°C
|
+30°C
|
-
|
18 m3
|
24 m3
|
26 m3
|
25 m3
|
|
+40°C
|
-
|
13 m3
|
18 m3
|
19 m3
|
19 m3
|
|
|
-20°C
|
+30°C
|
-
|
15 m3
|
19 m3
|
22 m3
|
21 m3
|
|
+40°C
|
-
|
11 m3
|
15 m3
|
17 m3
|
16 m3
|
| SOUND EMISSION | ||
|---|---|---|
|
Sound Power
|
Power Lwa
|
97 dB
|
|
Diesel - High Speed
|
Pressure
|
68.2 dB
|
|
Diesel - Low Speed
|
Pressure
|
66 dB
|
|
Standby - 400V/3/50 Hz
|
Pressure
|
59.7 dB
|
| COMPONENTS | ||
|---|---|---|
|
Engine
|
Displacement
|
719 cc
|
|
# cylinders
|
3
|
|
|
Motor
|
Voltage
|
400V/3/50Hz
|
|
Power
|
3.6 kW
|
|
|
Compressor
|
Techno
|
Reciprocating
|
|
Model
|
O5K2
|
|
|
Controls
|
EasyCold
|
| REFRIGERANT | ||
|---|---|---|
|
Refrigerant
|
Type
|
R452A
|
|
Charge
|
6.2 kg
|
Example for multi-temperature configuration
