A Citimax Unit for Every Purpose
A Comprehensive Range Tailored to Your Needs
Citimax Truck Refrigeration Units
The cool experience of cool confidence
Carrier Transicold provides a full range of Citimax refrigeration units designed for light commercial vehicles. The specifications of the Citimax 280, 350, 400, 500+, 700 and 1100 units make it possible for you to choose the best fit according to vehicle size, ambient temperatures and type of goods transported.
Your cold chain is consistently under control
Your temperature-sensitive products must be delivered in ideal condition.
They need a stable environment during transportation with controlled temperature and the ability to maintain the integrity of the cold chain. Citimax range allows you to deliver fresh and frozen products safely and with confidence thanks to the cooling power, the high refrigeration capacity (up to 58 m3) and easy fitting for any box size.
Carrier Transicold’s Citimax Refrigeration Unit Performance
Versatility
For all applications from fresh to deep frozen goods
Pull Down
20% faster pull down
Temperature Accuracy
Your temperature set points stay within +/- 1°C.
Power and Safety
Even more power and safety for road-only application

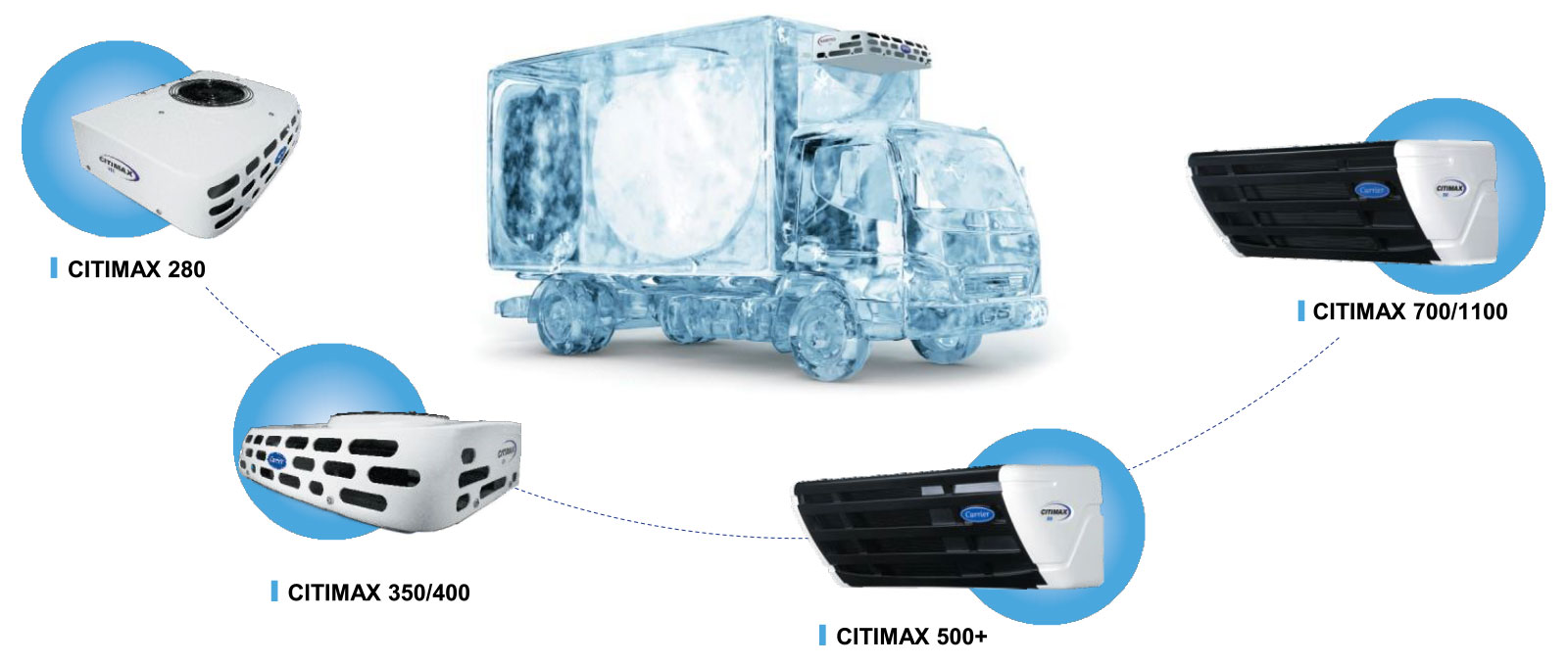

View the full Citimax range
Citimax 280
Specifications
Refrigeration Capacity
| Capacity on road at 2400rpm 0°C (W) | 3000 |
| Capacity on road at 2400rpm -20°C (W) | 1600 |
Heating Capacity
| 18°C/-18°C (W) | 2930 |
Airflow
(High speed engine operation)
| (AMCA 21085) m3/hr | 1150 |
Weight
| Condenser | 28 kg |
| Evaporator | 16 kg |
Compressor
| Model | Carrier 150 |
| Displacement | 147 cm3 |
| n° of cylinders | 6 |
Refrigerant
| Type | R404A |
| Charge | 1.15 kg |
Unit
| Dimensions Condenser (W x H x D) | 769 x 206 x 550 mm |
| Dimensions Evaporator (W x H x D) | 857 x 170 x 608 mm |
Citimax 350
Specifications
Refrigeration Capacity
| Capacity on road at 2400rpm 0°C (W) | 3500 |
| Capacity on road at 2400rpm -20°C (W) | 1900 |
Heating Capacity
| 18°C/-18°C (W) | 3150 |
Airflow
(High speed engine operation)
| (AMCA 21085) m3/hr | 1150 |
Weight
| Condenser | 32 kg |
| Evaporator | 16 kg |
Compressor
| Model | Carrier 150 |
| Displacement | 147 cm3 |
| n° of cylinders | 6 |
Refrigerant
| Type | R404A |
| Charge | 1.15 kg |
Unit
| Dimensions Condenser (W x H x D) | 870 x 214 x 550 mm |
| Dimensions Evaporator (W x H x D) | 857 x 170 x 608 mm |

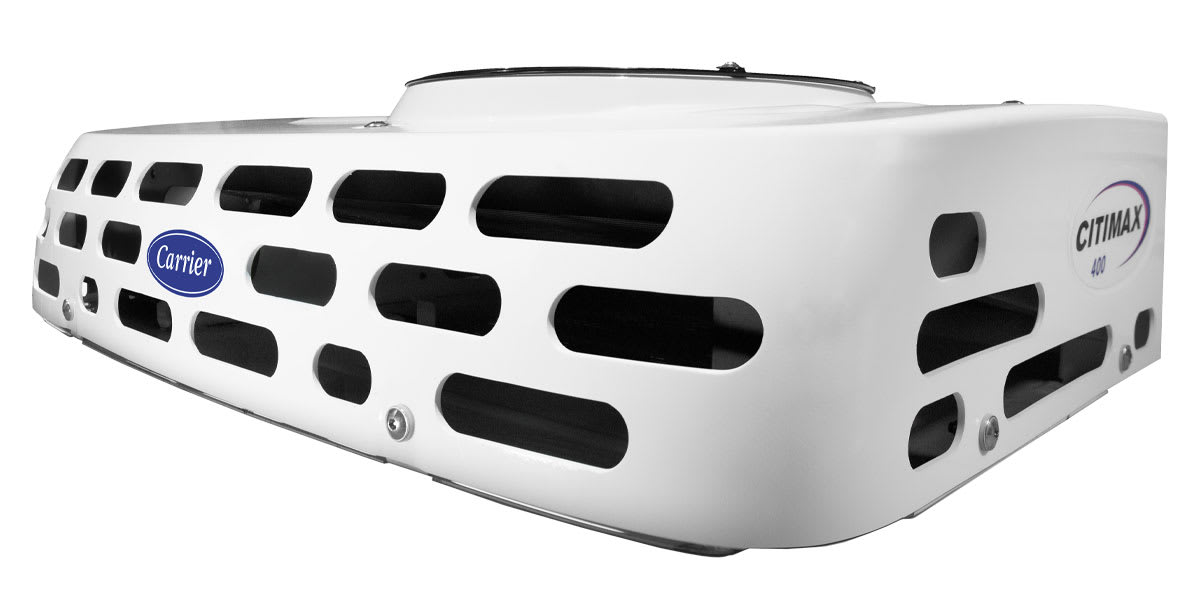

Citimax 400
Specifications
Refrigeration Capacity
| Capacity on road at 2400rpm 0°C (W) | 4250 |
| Capacity on road at 2400rpm -20°C (W) | 2200 |
Heating Capacity
| 18°C/-18°C (W) | 3730 |
Airflow
(High speed engine operation)
| (AMCA 21085) m3/hr | 2000 |
Weight
| Condenser | 32 kg |
| Evaporator | 22 kg |
Compressor
| Model | Carrier 160 |
| Displacement | 161 cm3 |
| n° of cylinders | 6 |
Refrigerant
| Type | R404A |
| Charge | 1.15 kg |
Unit
| Dimensions Condensor (W x H x D) | 870 x 214 x 550 mm |
| Dimensions Evaporator (W x H x D) | 1100 x 193 x 614 mm |

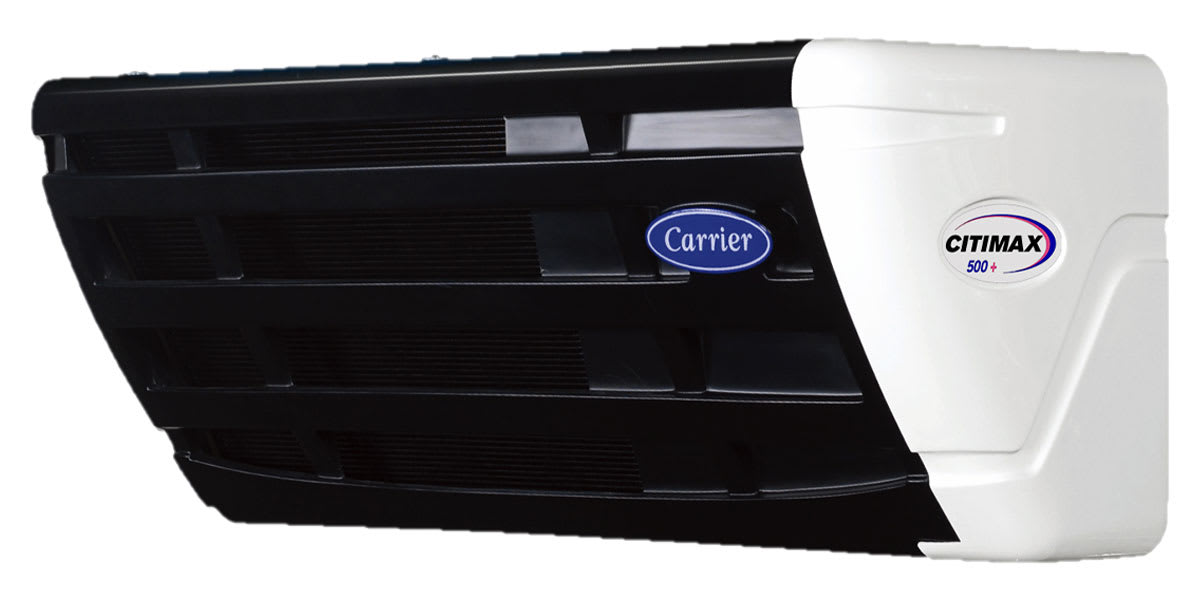

Citimax 500+
Specifications
Refrigeration Capacity
| Capacity on road at 2400rpm 0°C (W) | 5100 |
| Capacity on road at 2400rpm -20°C (W) | 2700 |
Heating Capacity
| 18°C/-18°C (W) | 3600 |
Airflow
(High speed engine operation)
| (AMCA 21085) m3/hr | 2200 |
Weight
| Condenser | 51 kg |
| Evaporator | 22 kg |
Compressor
| Model | Carrier 160 |
| Displacement | 161 cm3 |
| n° of cylinders | 6 |
Refrigerant
| Type | R404A |
| Charge | 2.80 kg |
Unit
| Dimensions Condensor (W x H x D) | 1413 x 503 x 543 mm |
| Dimensions Evaporator (W x H x D) | 1100 x 193 x 614 mm |

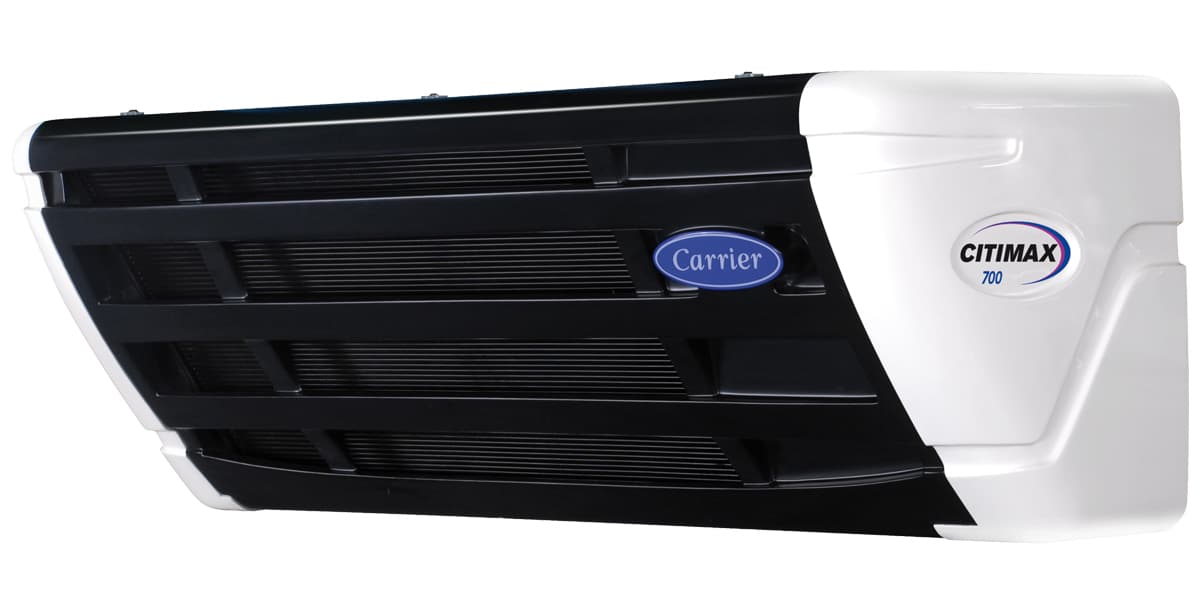

Citimax 700
Specifications
Refrigeration Capacity
| Capacity on road at 2400rpm 0°C (W) | 6550 |
| Capacity on road at 2400rpm -20°C (W) | 3490 |
Heating Capacity
| 18°C/-18°C (W) | 4100 |
Airflow
(High speed engine operation)
| (AMCA 21085) m3/hr | 2200 |
Weight
| Condenser | 62 kg |
| Evaporator | 35 kg |
Compressor
| Model | Carrier 210 |
| Displacement | 215 cm3 |
| n° of cylinders | 6 |
Refrigerant
| Type | R404A |
| Charge | 4.0 kg |
Unit
| Dimensions Condensor (W x H x D) | 1413 x 503 x 543 mm |
| Dimensions Evaporator (W x H x D) | 1222 x 276 x 551 mm |

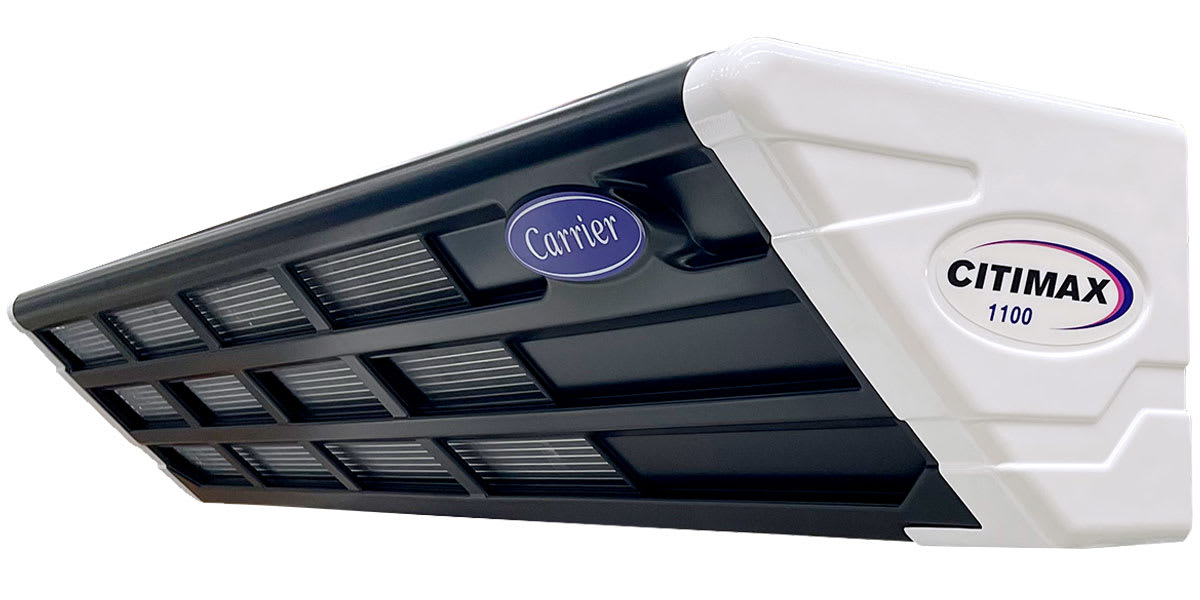

Citimax 1100
Specifications
Refrigeration Capacity
| Capacity on road at 2400rpm 0°C (W) | 10200 |
| Capacity on road at 2400rpm -20°C (W) | 5100 |
Heating Capacity
| 18°C/-18°C (W) | 7600 |
Airflow
(High speed engine operation)
| m3/hr | 3300 |
Weight
| Condenser | 53 kg |
| Evaporator | 46 kg |
Compressor
| Model | Carrier 310 |
| Displacement | 313 cm3 |
| n° of cylinders | 10 |
Refrigerant
| Type | R404A |
| Charge | 3.6 kg |
Unit
| Dimensions Condensor (W x H x D) | 1780 x 304 x 388 mm |
| Dimensions Evaporator (W x H x D) | 1560 x 225 x 689 mm |
