Xarios 350 MT
Xarios 350 MT
Modular range for vans and medium-sized refrigerated vehicles
BENEFITS
- Extra-flat evaporator to allow extra loading
- High reliability and longer product lifetime due to brushless fans and advanced electronic controller
The XARIOS range is a direct drive refrigeration unit demonstrating unique versatility for vans and trucks. Its design enables transportation of fresh and frozen goods, in single or multi-temperature applications, in vehicles with box volumes from 8 to 45m3 and is available in road only or road and standby versions.
COLD CHAIN RESPECT
Featuring R404A refrigerant, XARIOS offers a large range of capacities covering temperatures from -20°C to +30°C. Supported by an extensive lineup of ultraslim evaporators, including the MXV 850 vertical evaporator, multi-temperature configurations are widely available for multiproduct deliveries.
OPTIMIZED COST OF USE
Balancing performance and cost of operation, the XARIOS range offers simple and rapid installation, light weight evaporators to optimise load space and enhanced accessibility for reduced maintenance time.
DRIVER’S COMFORT
To limit the impact on the community and improve the driver’s comfort, the XARIOS range shows low noise levels. Eventually, the cab command is easy to operate and enables an automatic selection of road or road and standby mode. The units’ condensers and evaporator skins are fully recyclable.
BENEFITS
- Extra-flat evaporator to allow extra loading
- High reliability and longer product lifetime due to brushless fans and advanced electronic controller
Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)
| MXS 850 | MXS 600 | MXV 850 | |
| Capacity on road at 2400rpm 0°C (W) | 3 000 | 2 290 | 2 769 |
| Capacity on road at 2400rpm -20°C (W) | 1 730 | 1 390 | 1 550 |
| Standby capacity (W) | 1 860 | 1 610 | 1 570 |
| Standby capacity (W) | 910 | 730 | 740 |
Heating Capacity
| Heating system 18°C/-18°C (W) | 3 100 |
Airflow
(High speed engine operation)
| (AMCA 21085) m3/hr | 820 | 730 | 750 |
Weight
| Road condenser weight | 42 kg |
| Road and standby condenser | 85 kg |
| Evaporator MXS 850 | 19 kg |
| Evaporator MXS 600 | 15 kg |
| Evaporator MXV 850 | 17 kg |
Compressor
| Road compressor | Standby compressor | |
| Model | Carrier 150 | Carrier 150 |
| Displacement | 147 cm3 | 147 cm3 |
| n° of cylinders | 6 | 6 |
Electrical Stand by Motor
| Voltage / Phase / Frequency | 230/1/50 Hz
400/3/50 Hz 230/3/50 Hz |
| Rating | Depends on configuration |
Refrigerant
| Type | R-404A |
| Charge | 1,6 kg |
Sound Pressure
| High speed | 57 dBA |
Unit
| Dimensions (D x W x H) | 505 x 1125 x 238 mm |

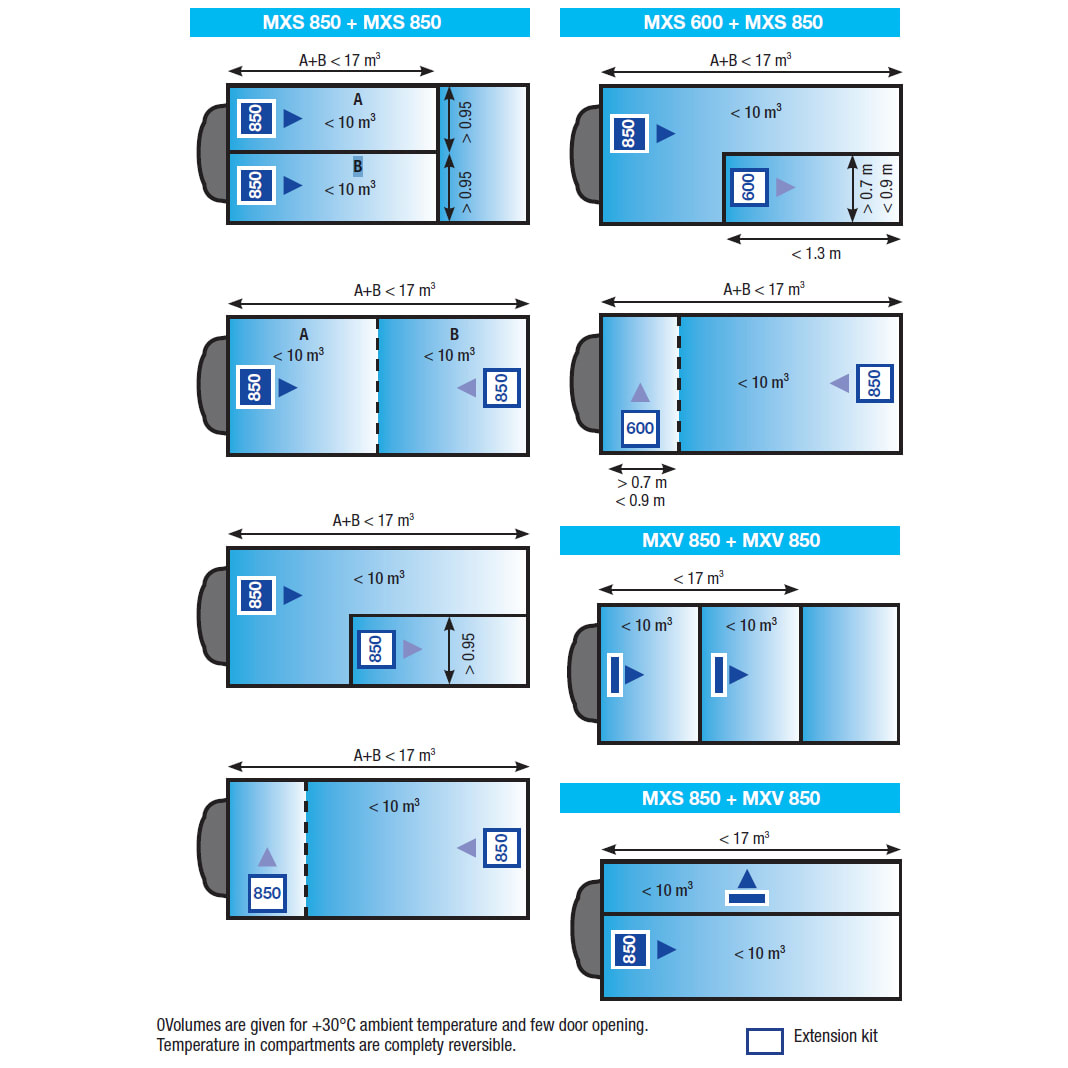

Example for multi-temperature configuration
