Zephyr 30S
Zephyr 30S
Proven versatility and reliability for medium-sized delivery vehicles
BENEFITS
- Proven performance for superior cargo protection
- Choice of roof-top or cubic evaporator for application versatility
- Microprocessor control and cab command make operation easier and safer
- Rapid installation and easy servicing contribute to reduced life cycle cost.

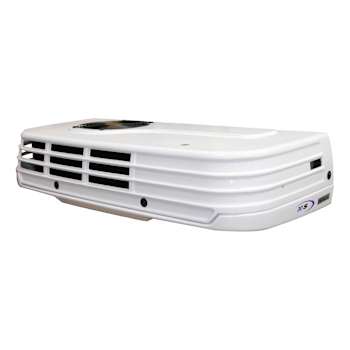

ZEPHYR 30S is an R134a direct drive refrigeration unit specifically designed for the transportation of fresh or frozen goods in medium-sized delivery vehicles with box volumes up to 23 m³.
A world « best-seller » in transport refrigeration, ZEPHYR 30S is a unit with an enviable reputation established through many years of reliability and performance in the market.
BENEFITS
- Proven performance for superior cargo protection
- Choice of roof-top or cubic evaporator for application versatility
- Microprocessor control and cab command make operation easier and safer
- Rapid installation and easy servicing contribute to reduced life cycle cost.
Refrigeration Capacity
(System net cooling capacity under A.T.P. Conditions at 30° C ambient)
| Cubic Evap | Roof Evap | |
| Capacity on road at 2400rpm 0°C (W) | 2 730 | 3 060 |
| Capacity on road at 2400rpm -20°C (W) | 1 280 | 1 525 |
| Capacity on road at 1000rpm 0°C (W) | 1 910 | 1 975 |
| Capacity on road at 1000rpm -20°C (W) | 785 | 930 |
| Standby capacity (W) | 1 930 | 1 990 |
| Standby capacity (W) | 780 | 850 |
Heating Capacity
| Heating system 18°C/-18°C (W) | 1 250 | 1 300 |
Airflow
(High speed engine operation)
| (AMCA 21085) m3/hr | 860 | 1060 |
Weight
| Road and standby condenser | 76 kg |
| Evaporator Cubic | 24 kg |
| Evaporator Roof | 23 kg |
Compressor
| Road compressor | Standby compressor | |
| Model | Carrier 160 | Carrier 160 |
| Displacement | 161 cm3 | 161 cm3 |
| n° of cylinders | 6 | 6 |
Electrical Stand by Motor
| Voltage / Phase / Frequency | 230/1/50 Hz
400/3/50 Hz 230/1/60 Hz |
| Rating | 1 800 W |
Refrigerant
| Type | R-134A |
| Charge | 1,8 kg |
Sound Pressure
| High speed | 57dBA |
Unit
| Condenser dimensions Roof-mount (D x W x H) | 558 x 1120 x 230mm |
| Condenser dimensions Front-mount (D x W x H) | 488 x 1120 x 230mm |
