Vector™ 8500

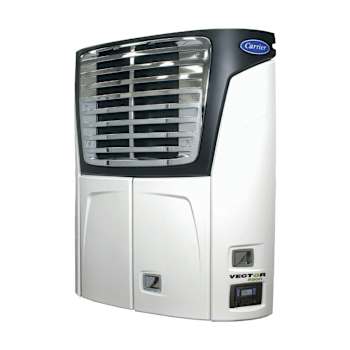

Vector™ 8500 Trailer Refrigeration Unit
Unmatched reliability, efficiency and value. The Vector 8500. Simply first. Simply better.
Features and Benefits:
- E-Drive™ technology. Proven and refined over a decade, Carrier Transicold’s all-electric trailer refrigeration technology means refrigeration and heating operations are 100 percent electric, powered over the road by an on-board generator driven by the unit’s diesel engine.
- Enhanced performance. The latest generation Vector™ TRUs utilize ecoFORWARD™ technologies to offer significantly reduced weight, improved fuel economy, and greater refrigeration capacity than our prior hybrid trailer refrigeration units.
- Advanced compressor design. For improved performance, the latest Vector refrigeration systems use a fully sealed electric scroll compressor with 70 percent fewer moving parts and weighing 200 pounds less than a traditional reciprocating compressor.
- Reduced maintenance cost. The Vector TRU eliminates many maintenance items found in conventional mechanical refrigeration systems, such as alternators, drive belts, idlers, vibrasorbers, compressor shaft seals, and clutches.
- Compliance plus. The unit provides compliance with 2013 EPA Tier 4 emissions regulations, while also improving operational efficiencies and performance.
- Intelligent operation. Vector units have the unique ability to turn individual components on when they’re needed, and off when they’re not.
- Electric standby. Standard with Vector units, this feature cuts fuel consumption, engine noise and emissions, while boosting operational savings.
Performance Specifications
Condenser Dimensions
76.4" x 85.7" x 22.8"
(1,940 x 2,176 x 579 mm)
Evaporator Dimensions
66.3" x 45.2" x 8.2"
(1,684 x 1,149 x 280 mm)
Body Opening
66.8" x 46.0" (1,696 x 1,168 mm)
Approximate Weight
1,810 lb. (820 kg) including electric standby
Remote 50-gallon aluminum fuel tank with mounting brackets: 65 lb. (29 kg)
Battery: 50 lb. (23 kg)
Cooling Capacity
Ambient at 100°F (38°C)
| Evaporator Return Air Temp. | High Speed Diesel or Electric Standby Operation | |
| BTU/hr | Watts | |
| 35°F ( 2°C) | 60,000 | 17,585 |
| 0°F (-18°C | 35,000 | 10,260 |
| -20°F (-29°C) | 24,000 | 7,035 |
Evaporator Airflow
Applied system performance:
3,100 cfm (5,270 m3 /hr)
