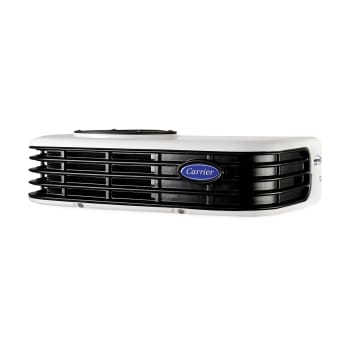

Neos 200e Electric Truck Refrigeration Unit

The all-electric Neos™ 200e unit is part of Carrier Transicold’s growing family of eCool™ all-electric refrigeration systems designed to push emissions toward zero. Developed for commercial vans and light-duty trucks, the unit provides increased efficiency and nearly 40% greater cooling capacity than the unit it succeeds.

Features and Benefits:

• Versatility. The unit supports both battery-operated and engine driven vehicles. On a battery-electric vehicle, the Neos 200e is powered by the vehicle’s battery supply, and on an internal-combustion vehicle, the Neos 200e is powered via the vehicle's alternator and battery, enabling a constant cooling capacity for fresh and frozen cargoes, regardless of engine speed.
• High-efficiency Performance. The brazed-plate heat exchanger provides better heat transfer, a larger evaporator coil and a 60% increase in airflow with no increase in energy consumption.
• Maximum Cargo Space. Utilizing Carrier’s space-saving SlimLine™ evaporator.
• Enhanced Sustainability. The use of the new-generation refrigerant R-452A, which has about half the global warming potential of R-404A.

Performance Specifications

Condenser Dimensions
34" x 18.9" x 9.1"
(864 x 480 x 231 mm)

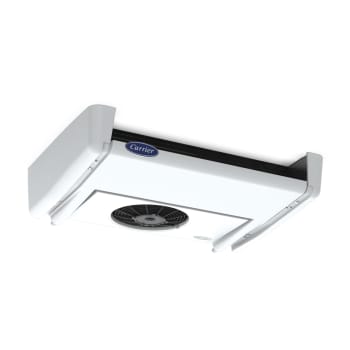

Evaporator Dimensions (MNS 850)
33.8" x 24.4" x 7.6"
(859 x 620 x 193 mm)

CAB COMMAND™ 2
3.4" x 2.4" x 1.1"
(85 x 60 x 28 mm)

Evaporator Airflow
665 cfm (1,130 m³/hr)

Cooling/Temperature Capacity:
Ambient at 100°F (38°C)
Speed: 1,000 rpm @ 60 Hertz electric standy operation
