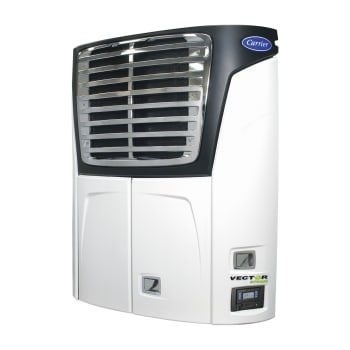

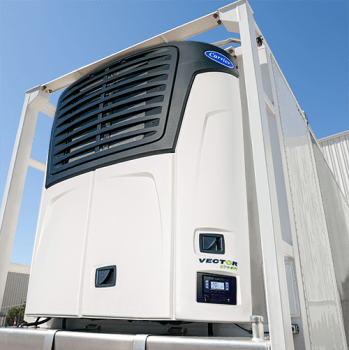

Vector™ 8700R Refrigerated Rail Unit Vector 8700R
Vector™ 8700R Refrigerated Rail Unit
Premium performance for greater fuel efficiency and sustainability. Built to handle the rigors of intermodal and rail duty.
Features and Benefits:
- E-Drive™ technology. Innovative hybrid design uses a new smart engine to drive the generator powering its all-electric refrigeration system, resulting in better fuel economy and performance.
- Enhanced compliance. Reduced emissions that surpass EPA Tier 4, and lifetime compliant with California Air Resources Board (CARB) requirements without the need for future exhaust systems. Sustainability enhanced with R-452A, a lower global warming potential refrigerant.
- Ultra-high efficiency. Provides 10% greater fuel efficiency than its standard counterpart, thanks to its three-speed engine with common-rail fuel injection.
- Reduced maintenance and exceptional reliability. Fewer moving parts, which reduces maintenance requirements, optimizing reliability and uptime.
- Nationwide support network. More than 180 Carrier Transicold authorized dealers available throughout North America with experience and expertise to provide safe, reliable service wherever needed.
- RailCare™ Warranty. Includes travel time and repair setup for on-site assistance.
Condenser Dimensions
76.4" x 85.7" x 22.8" (1,940 x 2,176 x 579 mm)
Evaporator Dimensions
66.3" x 45.2" x 8.2" (1,684 x 1,149 x 208 mm)
Body Opening
66.8" x 46.0" (1,696 x 1,168 mm)
Approximate Weights
1,815 lb. (823 kg) including electric standby
Remote 50 gallon aluminum fuel tank with mounting brackets: 65 lb. (29 kg)
Battery: 50 lb. (23 kg)
Cooling/Temperature Capacity:
Ambient at 100°F (38°C)
| Evaporator Return Air Temp. | High Speed Diesel or Electric Standby Operation | |
| BTU/hr | Watts | |
| 35°F (2°C) | 58,000 | 16,998 |
| 0°F (-18°C) | 33,500 | 9,818 |
| -20°F (-29°C) | 22,000 | 6,594 |
Evaporator Airflow
Applied system performance: 3,100 cfm (5,270 m3/hr)
Features and Benefits:
- E-Drive™ technology. Innovative hybrid design uses a new smart engine to drive the generator powering its all-electric refrigeration system, resulting in better fuel economy and performance.
- Enhanced compliance. Reduced emissions that surpass EPA Tier 4, and lifetime compliant with California Air Resources Board (CARB) requirements without the need for future exhaust systems. Sustainability enhanced with R-452A, a lower global warming potential refrigerant.
- Ultra-high efficiency. Provides 10% greater fuel efficiency than its standard counterpart, thanks to its three-speed engine with common-rail fuel injection.
- Reduced maintenance and exceptional reliability. Fewer moving parts, which reduces maintenance requirements, optimizing reliability and uptime.
- Nationwide support network. More than 180 Carrier Transicold authorized dealers available throughout North America with experience and expertise to provide safe, reliable service wherever needed.
- RailCare™ Warranty. Includes travel time and repair setup for on-site assistance.
Condenser Dimensions
76.4" x 85.7" x 22.8" (1,940 x 2,176 x 579 mm)
Evaporator Dimensions
66.3" x 45.2" x 8.2" (1,684 x 1,149 x 208 mm)
Body Opening
66.8" x 46.0" (1,696 x 1,168 mm)
Approximate Weights
1,815 lb. (823 kg) including electric standby
Remote 50 gallon aluminum fuel tank with mounting brackets: 65 lb. (29 kg)
Battery: 50 lb. (23 kg)
Cooling/Temperature Capacity:
Ambient at 100°F (38°C)
| Evaporator Return Air Temp. | High Speed Diesel or Electric Standby Operation | |
| BTU/hr | Watts | |
| 35°F (2°C) | 58,000 | 16,998 |
| 0°F (-18°C) | 33,500 | 9,818 |
| -20°F (-29°C) | 22,000 | 6,594 |
Evaporator Airflow
Applied system performance: 3,100 cfm (5,270 m3/hr)
