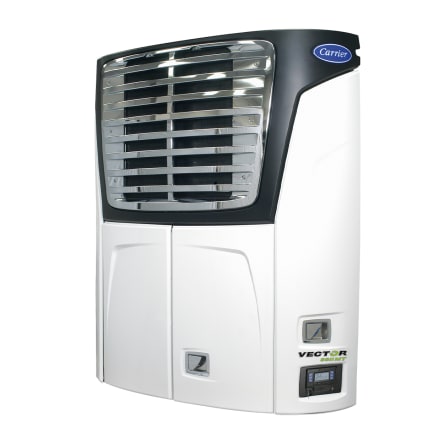

Vector™ 8811MT Multi-Temperature Trailer Refrigeration Unit

Carrier Vector 8811MT logo

Innovative dual-evaporator system with premium performance capabilities.

The Vector 8811MT is designed for trailers divided lengthwise with a center dividing wall. The unit creates two refrigerated compartments without requiring a remote evaporator.

The ideal solution for multi-temperature vehicles which demand high capacity, high airflow, and fast recovery after frequent deliveries.

Carrier Vector 8811MT Multi-Temperature Trailer Refrigeration Unit installed on truck
  • The Vector 8811MT is designed for trailers divided lengthwise with a center dividing wall, the unit creates two refrigerated compartments without requiring a remote evaporator.
  • Optimum flexibility. Unlike competitive systems, it provides 15 inches of center wall placement flexibility for more efficient pallet accommodation and up to 17% more cargo.
  • E-Drive™ technology. Innovative hybrid design uses a new smart engine to drive the generator powering its all-electric refrigeration system, resulting in better fuel economy and performance.
  • Enhanced compliance. Surpasses EPA Tier 4, and lifetime compliant with California Air Resources Board (CARB) emissions requirements without the need for future exhaust systems.
  • Streamlined design. Eliminates check and solenoid valves resulting in fewer braze joints than competitive models. Other system advantages include independent air control, damperless defrost, and consistent all-electric heating.
  • High efficiency. Delivers high airflow, fast pulldown, and low fuel consumption.

Vector™ 8811MT Trailer Refrigeration Uniot


Carrier Vector 8811MT logo

Performance Specifications

Condenser Dimensions
76.4" x 85.7" x 22.8"
(1,940 x 2,176 x 579 mm)

Evaporator Dimensions
66.3" x 45.2" x 8.2"
(1,684 x 1,149 x 280 mm)

Body Opening
66.8" x 46.0"
(1,696 x 1,168 mm)

Approximate Weight
1,925 lb. (873 kg) including electric standby
Remote 50-gallon aluminum fuel tank with mounting brackets: 65 lb. (29 kg)
Battery: 50 lb. (23 kg)

Cooling Capacity
Ambient at 100°F (38°C)

Evaporator Return Air Temp. Diesel Operation
  BTU/hr Watts
35°F ( 2°C) 53,000 15,533
0°F (-18°C) 31,000 9,085
-20°F (-29°C) 21,000 6,154

Evaporator Airflow
Applied system performance:
2,800 cfm (4,757 m3/hr)

Performance Specifications

Condenser Dimensions
76.4" x 85.7" x 22.8"
(1,940 x 2,176 x 579 mm)

Evaporator Dimensions
66.3" x 45.2" x 8.2"
(1,684 x 1,149 x 280 mm)

Body Opening
66.8" x 46.0"
(1,696 x 1,168 mm)

Approximate Weight
1,925 lb. (873 kg) including electric standby
Remote 50-gallon aluminum fuel tank with mounting brackets: 65 lb. (29 kg)
Battery: 50 lb. (23 kg)

Cooling Capacity
Ambient at 100°F (38°C)

Evaporator Return Air Temp. Diesel Operation
  BTU/hr Watts
35°F ( 2°C) 53,000 15,533
0°F (-18°C) 31,000 9,085
-20°F (-29°C) 21,000 6,154

Evaporator Airflow
Applied system performance:
2,800 cfm (4,757 m3/hr)
