AquaSnap® - Air-to-water heat pump
30AWH-R 04R-16R

Refrigerant : R32

Compressor : full inverter twin rotary

Nominal cooling capacity : 4 - 16 kW

Nominal heating capacity : 4 - 16 kW

Operating range : -25°C ~ +50°C

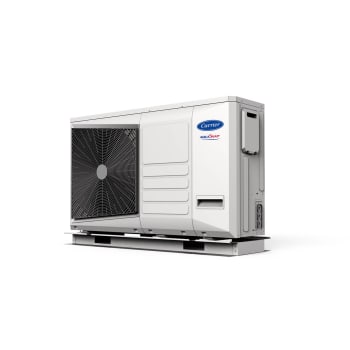

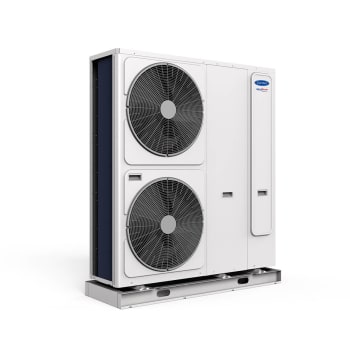

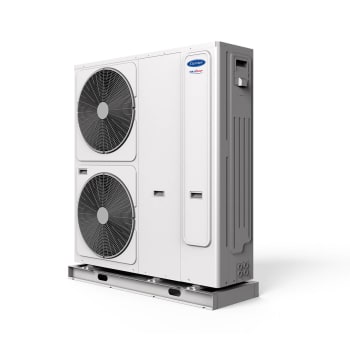

The 30AWH-R monobloc air-to-water heat pump is designed for heating and cooling applications in new and existing individual homes and small businesses.

carrier-AquaSnap-reversible
carrier-icon-refrigerant-R-32

Wide range offer

  • The 30AWH-R range of reversible heat pumps comprises 7 single-phase models and 3 three-phase models, from 4 kW to 16 kW.

Low carbon footprint

  • Refrigerant R32 (GWP=675) helps protect the environment and achieve greenhouse emissions phase-down requirements.

Year-round comfort

  • Operating in wide temperature range (up to 50°C in cooling mode and -25°C in heating mode) and is able to produce hot water ∼60 °C at an outdoor temperature of up to 35 °C for domestic hot water applications.

High energy efficiency

  • SCOP up to 4.98
  • SEER up to 5.06
  • Energy class A+++ (35°C) or A++ (55°C) offering high heating power at less energy consumption.

Plug & Play

  • Integrated hydraulic module
  • 3kW electric heater
  • And touch-screen wired controller for easy & fast installation, start-up and operation of the unit.

Certified performance

  • New 30AWH-R can satisfy limitation for local incentive (depending on local regulations),such as NFPAC certified performance.
  • Included for immediate start-up and use the unit
  • Touchscreen with intuitive icons to help to avoid language barrier
  • Modbus protocol and network flexibility
  • Occupancy mode (Home, Away, Eco) and Night mode
  • Weekly timer function
  • Defrost, Anti-Legionella, Anti-freeze protection
  • Two levels of access : end-user and technician

Wide range offer

  • The 30AWH-R range of reversible heat pumps comprises 7 single-phase models and 3 three-phase models, from 4 kW to 16 kW.

Low carbon footprint

  • Refrigerant R32 (GWP=675) helps protect the environment and achieve greenhouse emissions phase-down requirements.

Year-round comfort

  • Operating in wide temperature range (up to 50°C in cooling mode and -25°C in heating mode) and is able to produce hot water ∼60 °C at an outdoor temperature of up to 35 °C for domestic hot water applications.

High energy efficiency

  • SCOP up to 4.98
  • SEER up to 5.06
  • Energy class A+++ (35°C) or A++ (55°C) offering high heating power at less energy consumption.

Plug & Play

  • Integrated hydraulic module
  • 3kW electric heater
  • And touch-screen wired controller for easy & fast installation, start-up and operation of the unit.

Certified performance

  • New 30AWH-R can satisfy limitation for local incentive (depending on local regulations),such as NFPAC certified performance.
  • Included for immediate start-up and use the unit
  • Touchscreen with intuitive icons to help to avoid language barrier
  • Modbus protocol and network flexibility
  • Occupancy mode (Home, Away, Eco) and Night mode
  • Weekly timer function
  • Defrost, Anti-Legionella, Anti-freeze protection
  • Two levels of access : end-user and technician
