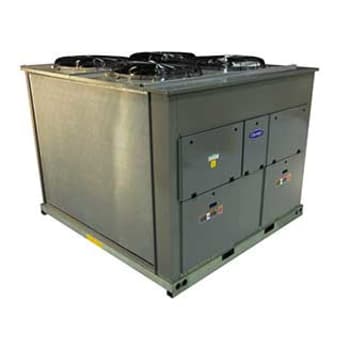

38APD
Air-Cooled Condensing Unit
Scroll compressors
Dual circuit
R410A
50/60Hz
Capacity range: 88~457 kW
- Features two independent refrigerant circuits on all sizes.
- Highly efficient hermetic scroll compressor(s).
- Various combinations of condensing units with air handlers provide solutions to cover a wide range of commercial cooling solutions.
- Low roof-load weight distribution and weatherproof construction enable rooftop or on-the-ground installations.
- Commercial and industrial air conditioning applications.
Performance Features
- Condensing unit EERs up to 11.5 and IPLV up to 16.2
- Unit performance rated in accordance with AHRI Standard 365
- Full capacity range dual-circuit units (25-130 sizes)
- Hermetic scroll compressors with option for digital compressor for superior part-load performance
- Novation® microchannel heat exchanger (MCHX) condenser coils with option for E-coated Novation condenser coils
- Compressor with neoprene isolators and oil heater(s)
Reliability Features
- Galvanized steel cabinet, bonderized and finished with baked enamel, 500-hour salt-spray test
- High and low-pressure protection
- Compressor overload protection
- Loss of charge and low suction superheat protection
- Self contained 24-v CCN (Carrier Comfort Network) controls including transformer
- Low ambient head pressure control
- UL, CSA, and ETL approved
Maintenance Features
- Oil-level sight glass, filter driers, liquid line solenoid valve
- Access panel accessibility to compressor and control box
- Compressor suction service valves and liquid shutoff valves
Installation Features
- Shipped with nitrogen holding charge
- On-the-ground or rooftop installation
- 24V control circuit transformer permits quick, easy wiring of thermostats
Standard Warranty
- One-year parts only compressor
- One year parts only on all other parts
- Extended warranty packages available
Factory-Installed Options
- Novation® microchannel heat exchanger (MCHX) coils:
- Non-coated
- E-coated
- Non-fused disconnect
- Low sound fans
- Long line length check valves
- High SCCR
- Motormaster® V low ambient control
- ComfortLink controls with scrolling marquee display module
- Energy management module
- Digital compressor
Field-Installed Accessories
- Long line length check valves
- Energy management module
- Navigator display
- TouchPilot display
- BACnet translator control
- LON translator control
Capacity Ratings
Size | 60Hz | 50Hz | ||||||
---|---|---|---|---|---|---|---|---|
Nominal Capacity (Tons) | Nominal Capacity (kW | EER | IPLV | Nominal Capacity (Tons) | Nominal Capacity (kW) | EER | IPLV | |
025 | 24.0 | 84.3 | 11.0 | 13.1 | 20.0 | 70.3 | 11.6 | 16.4 |
027 | 26.6 | 93.4 | 10.9 | 14.0 | 22.2 | 78.1 | 11.7 | 15.4 |
030 | 31.1 | 109.2 | 10.8 | 12.8 | 26.0 | 91.4 | 11.5 | 14.2 |
040 | 39.2 | 137.7 | 11.5 | 15.3 | 32.6 | 114.6 | 12.0 | 17.4 |
050 | 50.0 | 175.6 | 11.1 | 14.9 | 41.6 | 146.3 | 11.4 | 16.7 |
060 | 58.3 | 204.7 | 11.0 | 14.5 | 48.0 | 168.8 | 11.5 | 16.4 |
070 | 67.3 | 236.4 | 11.0 | 15.7 | 58.5 | 205.7 | 11.3 | 17.7 |
080 | 78.0 | 273.9 | 11.1 | 15.6 | 64.5 | 226.8 | 11.5 | 17.5 |
090 | 87.4 | 306.9 | 11.3 | 15.3 | 71.9 | 252.8 | 11.8 | 17.4 |
100 | 96.0 | 337.2 | 11.1 | 15.0 | 79.8 | 280.3 | 11.6 | 16.9 |
115 | 110.4 | 388.3 | 11.1 | 15.2 | 90.8 | 319.3 | 11.6 | 17.1 |
130 | 125.1 | 442.3 | 11.1 | 15.2 | 103.7 | 364.6 | 11.5 | 17.1 |
LEGEND
EER = Energy Efficiency Ratio IPLV = Integrated Part Load Value
NOTES
1. Unit performance is rated in accordance with ARI (Air Conditioning and Refrigeration Institute) Standard 365.
2. Ratings are based on 45°F (7.2°C) saturated suction temperature and 95°F (35°C) outside-air temperature, and include suction line losses.
Weights and Dimensions (Dual Circuit)
Size | Operating Weight (lbs) | Dimensions (in) | ||
---|---|---|---|---|
Length | Width | Height | ||
025 | 1095 | 88.24 | 40.34 | 61.0 |
027 | 1258 | 88.24 | 40.34 | 73.1 |
030 | 1264 | 88.24 | 40.34 | 73.1 |
040 | 2094 | 92.13 | 88.24 | 73.0 |
050 | 2120 | 92.13 | 88.24 | 73.0 |
060 | 2227 | 92.13 | 88.24 | 73.0 |
070 | 2450 | 110.84 | 88.24 | 73.0 |
080 | 2610 | 151.09 | 88.25 | 73.0 |
090 | 2835 | 151.09 | 88.25 | 73.0 |
100 | 2844 | 151.09 | 88.25 | 73.0 |
115 | 3211 | 191.34 | 88.25 | 73.0 |
130 | 3353 | 191.34 | 88.25 | 73.0 |
